Handrail Moulding 5-1/2" - 4

Handrail Moulding 5-1/2" - 4

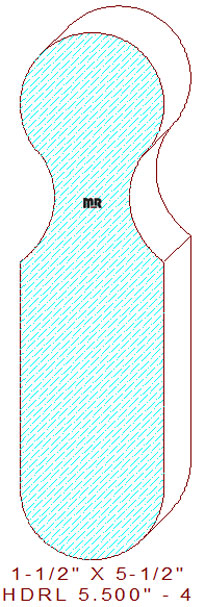

This beautiful handrail moulding 5-1/2" - 4 measures 5.500" tall by 1.500" wide. The rectangular profile is comprised of a 3/4" radius full round top that transitions into a two-tangent radius finger grip area, at a 25/32" width dimension in the center, attached to tall vertical lines on the sides and a 1-1/2" wide half circle at the bottom.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this lovely handrail detail. From just an idea in one's mind, to reality in their home, our moulding profiles reflect the beauty and style of your imagination, let us help you design a custom pattern today.

For knife quoting purposes use the calculator below, we have added only the important dimensions, just determine the profiles you need. A brief detailed explanation on how to use the calculator is located here.

Width = 5.000" / Depth of Cut = .357" (top & bottom cutters).

Thickness = 1.500" / Depth of Cut = .883" (right & left knives).

Only one template is required for the top & bottom as well as the left and right profiles.

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
