Handrail 5-1/2" - 6

Handrail 5-1/2" - 6

Handrail 5-1/2" - 6

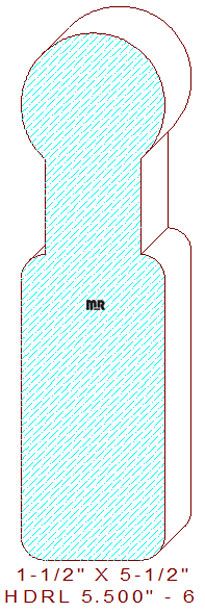

This 5-1/2" - 6 handrail measures 1.500" wide by 5.500" tall. The profile consists of a 3/4" radius full round top with a 1" tall finger gripping area, and the remaining 3-3/16" of the design is square with 1/4" radius corners. We have many more styles to choose from so please adjust your search parameters for several more options.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.491
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 5.500
Depth of Cut: 0.437
Bottom Cutter Head
Width: 5.500
Depth of Cut: 0.437

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.50
Not Needed
$355.50
$312.50
(Template not needed)
Total:
$823.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
Not Needed
$380.50
$337.50
(Template not needed)
Total:
$882.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
Not Needed
$405.50
$362.50
(Template not needed)
Total:
$941.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
