Handrail 5-1/2" - 9

Handrail 5-1/2" - 9

Handrail 5-1/2" - 9

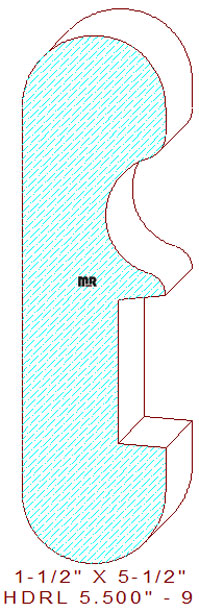

This 5-1/2" - 9 hospital handrail measures 1.500" wide by 5.500" tall with a .625" depth of cut on the top knives, the left and right half-round cutters each have a depth of cut of .906". The handrail/wall guard profile is comprised of a 3/4" radius bullnose located on both the top and bottom of the railing, the functional finger grip area retains a 5/8" radius cavetto that provides a smooth transition between geometrical shapes, the dadoed area for the mounting bracket is plowed 1-1/2" wide by 1/2" deep. This Cad generated Dxf file contains two skillfully drafted moulding templates for creating custom moulding knives for this useful pattern.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.906
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.906
Top Cutter Head
Width: 5.500
Depth of Cut: 0.625
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000

Grades of Steel

Price Per Cutter Head - Includes Template & Two Knives

*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$164.50
$121.50
(Template not needed)
$355.50
Not Needed
Total:
$641.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$173.50
$130.50
(Template not needed)
$380.50
Not Needed
Total:
$684.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
$405.50
Not Needed
Total:
$727.50
To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
