Handrail 6" - 11
Handrail 6" - 11

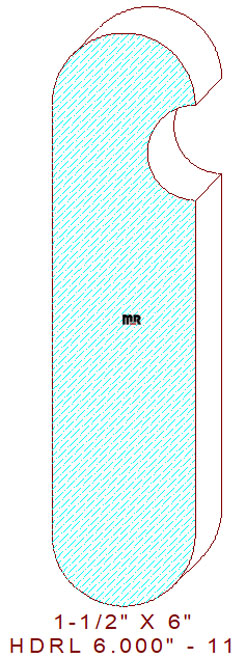

This tall, slender 6" - 11 handrail measures 1.500" wide by 6.000" tall, necessitating the use of two glued-up pieces of four or solid eight-quarter lumber for milling on an industrial moulder. The simple, functional profile is composed of a 3/4" radius bullnose on both the top and bottom, tangent to a 4-1/2" vertical line on the left, the right side retains a 1/2" wide by 1/2" deep flute which serves as a sturdy finger gripping area, the remaining portion of the design is a 3-1/2" tall vertical line segment.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.500
Depth of Cut: 0.500
Left Cutter Head
Thickness: 1.500
Depth of Cut: 0.500
Top Cutter Head
Width: 6.000
Depth of Cut: 0.500
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$160.00
$117.00
(Template not needed)
$394.00
Not Needed
Total:
$671.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$169.00
$126.00
(Template not needed)
$421.00
Not Needed
Total:
$716.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$182.50
$139.50
(Template not needed)
$461.50
Not Needed
Total:
$783.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
