Handrail 6" - 12
Handrail 6" - 12

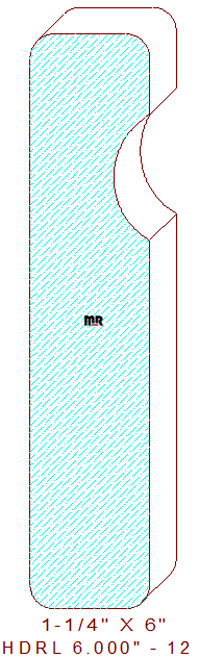

This towering 6" - 12 handrail measures 1.250" wide by 6.000" high, enabling milling out of six-quarter lumber. The slender profile is composed of a 5-1/2" vertical line with 1/4" round corners on the left, the right side retains a 31/64" vertical fillet on top with another 1/4" radius edge, the finger grip area is 1-5/16" high by 3/8" deep, connected to a 3-19/32" vertical line with yet another 1/4" round-over on the bottom edge of the design.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.250
Depth of Cut: 0.406
Left Cutter Head
Thickness: 1.250
Depth of Cut: 0.406
Top Cutter Head
Width: 6.000
Depth of Cut: 0.375
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$147.00
$104.00
(Template not needed)
$394.00
Not Needed
Total:
$645.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$155.00
$112.00
(Template not needed)
$421.00
Not Needed
Total:
$688.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$167.00
$124.00
(Template not needed)
$461.50
Not Needed
Total:
$752.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
