Handrail 7" - 3
Handrail 7" - 3

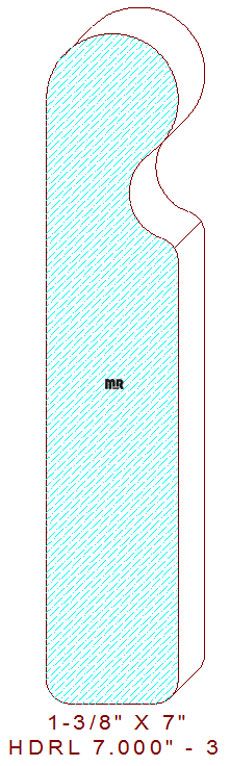

This 7" - 3 handrail measures 7.000" tall by 1-3/8" wide; the design consists of an 11/16" radius full round top with a 1/2" radius concave finger gripping area and two 1/4'" radius on the bottom edges of the profile to soften the appearance.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.375
Depth of Cut: 0.843
Left Cutter Head
Thickness: 1.375
Depth of Cut: 0.406
Top Cutter Head
Width: 7.000
Depth of Cut: 0.511
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$162.00
$153.50
$446.00
Not Needed
Total:
$761.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$170.50
$162.00
$477.00
Not Needed
Total:
$809.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$183.25
$174.75
$523.50
Not Needed
Total:
$881.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
