Corner 2-3/4"

Corner 2-3/4"

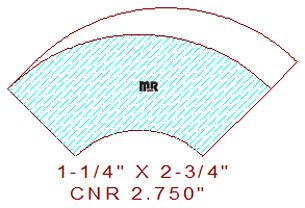

This 2-3/4" radius corner measures 2.740" wide by 1.256" thickness requiring six-quarter lumber to mill this pattern on industrial machinery. The profile comprises a 15/16" inside radius and a 1-15/16" outside radius connected by a 1.000" wide forty-five-degree angle on each side of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
© Copyright 1997 - 2025 Mirror Reflections Inc. All Rights Reserved.
