Corner 3-1/4" - 1

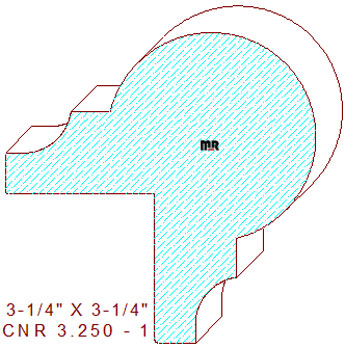

This fancy exterior corner 3-1/4" - 1 measure 3.250" square. The machining dimensions of the wood are 2.781" wide by 3.022" tall, necessitating glued-up pieces of five, six, or eight-quarter lumber for milling on a commercial-grade molder. The elegant profile contains a decorative 2-3/16" three-quarter round attached to a 27/64" broad fillet merged with an 11/16" wide congee attached to a 7/16" side edge. The notch dimension is 1-9/16" in both directions.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job a lot easier in the production process.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation of how to use the calculator is located here.

Width = 2.781" / Depth of Cut = .866" (top knives) & 1.088" (bottom cutters).

Thickness = 3.062" / Depth of Cut = .578" (right blades) & .578" (left cutters).
