Corner 3-1/2"
Corner 3-1/2"

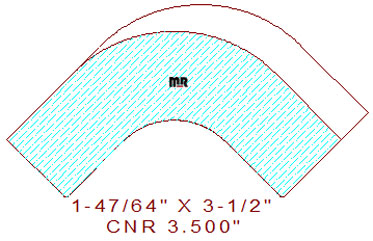

This radius corner 3-1/2" measures 3.500" wide by 1.731" thickness, requiring the use of a 3-3/4" wide blank of eight-quarter lumber for milling sprung (laying horizontally flat on an industrial molder. The time-honored profile gets installed on interior radius corners so the base molding can butt into the side edges. The profile contains a 1-1/2" radius convex arc tangent from a 31/32" beveled line on top. The bottom consists of a 3/4" radius concave semicircle tangent off of a 27/32" forty-five-degree angled line, leaving a 7/8" square edge for a 3/4" thickness baseboard to butt into when installed.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Top Cutter Head
Width: 3.500
Depth of Cut: 1.222
Bottom Cutter Head
Width: 3.500
Depth of Cut: 0.804
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$298.00
$281.00
Total:
$579.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$315.00
$298.00
Total:
$613.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
Not Needed
$340.50
$323.50
Total:
$664.00
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
