Mullion/Muntin Moulding 1-7/8" - 1

Mullion/Muntin Moulding 1-7/8" - 1

Mullion/Muntin Moulding 1-7/8" - 1

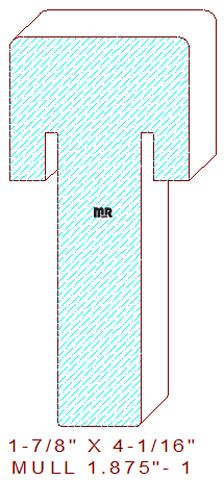

This mullion molding measures 4-1/16" wide by 1-7/8" thickness, often referred to as a T mullion because it resembles the letter, the design has a double 1/8" radius top, 1-1/2" at full width, and the center bar thickness is 7/8" with 1/16" radius bottom. The weatherstrip groove will have to be milled with a universal spindle on an industrial molder or be milled after production on a table saw, this operation will increase manufacturing time.

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
