Mullion/Muntin Moulding 2" - 2

Mullion/Muntin Moulding 2" - 2

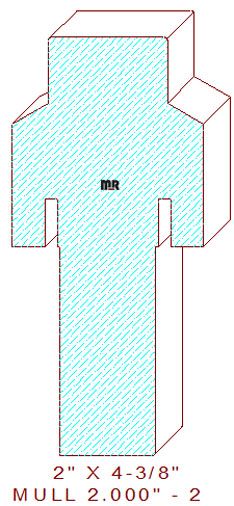

This Exterior Mullion Moulding 2" - 2 measures 2.000" wide by 4.375" tall, the 1-1/4" wide top center of the profile is comprised of vertical fillets and chamfered edges that flare out to full width, they are attached to a 2-3/16" tall vertical fillet that transition inward 1/2" on each side with eased edges on the bottom. The saw kerfs for the exterior weather stripping are milled with either a universal molder spindle or cut on a table saw after the milling process.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
