Bullnose 1-23/32"
Bullnose 1-23/32"

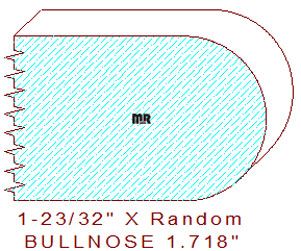

This bullnose measures 1-23/32" in thickness, and the width is set to the desired size at the time of manufacturing. The profile composes a 55/64" radius tangent to both face sides of a piece of lumber with a measurement of 1.718" thick. The knives have a 1-1/16" depth of cut, this will leave .026" of blend area on both edges of the blade while milling.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
