Nosing 1-3/4" - 17
Nosing 1-3/4" - 17

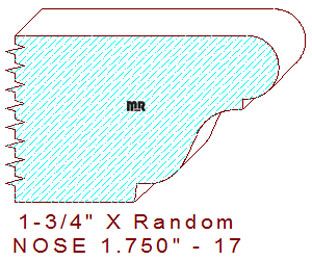

This nosing design measures 1-3/4" in thickness, widths are variable, and the knives are split into two patterns allowing half the pattern to be milled from the right and the other half milled from the top cutterhead on the machine.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
