Nosing 2-7/8"
Nosing 2-7/8"

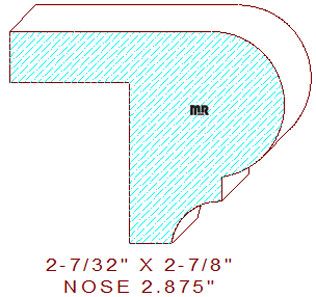

This countertop nosing 2-7/8" measures 2.875" wide by 2.218" thickness. The profile comprises a 1-1/2" half-round circle with a 1/4" tall vertical fillet and a 15/32" wide cavetto on the bottom. The rabbet on the opposite side measures 1-1/4" wide by 1-11/16" tall. While manufacturing this pattern, the profile is upside down and milled on the right vertical cutter head; the rabbet is machined on the left cutter head.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
