Nosing 4"

Nosing 4"

Nosing 4"

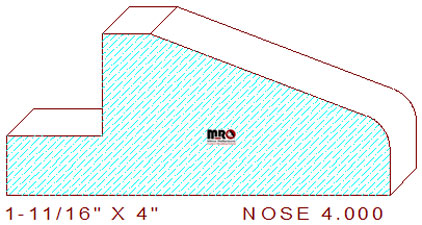

This countertop nosing 4" measures 4.000" wide by 1.687" thickness, enabling a 4-1/4" wide blank of eight-quarter lumber for milling on an industrial molder. The tapered pattern consists of a one-inch wide by 1-1/16" tall rabbet on the left. It is attached to a 1/2" wide fillet joined to a 20.794 degree downsloping angled line with a 3/8" rounded corner on the right edge.

Are you a molding manufacturer? Please add your company information to our millwork suppliers map. This valuable resource will help potential customers in your area experience the creative craftsmanship of your woodworking shop. Did you know you can connect our substantially sized moulding profile catalog to your website? It is free; offer your clients beautiful wood pattern designs that will enhance the grace and luxury of their elegant home.

For knife quoting purposes, click the calculator below; we supplied the important measurements; please insert the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 4.000" / Depth of Cut = .986" (top knives).

Thickness = 1.687" / Depth of Cut = 1.000" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
