Nosing 6" - 2
Nosing 6" - 2

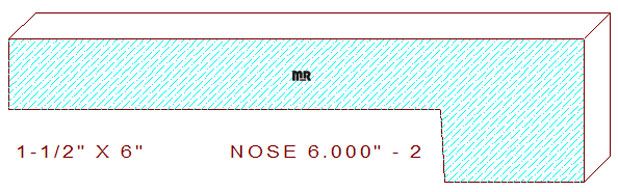

This long rectangular nosing 6" - 2 measures 6.000" wide by 1.500" thickness. The simple design has 1-1/2" of full-thickness on the front edge with the remaining 4-1/2" portion of the profile rabbeted .770" deep.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
