Nosing 7"
Nosing 7"

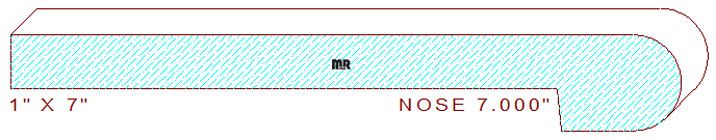

This nosing 7" measures 7.000" wide by 1.000" thickness. The profile is comprised of a 1/2" radius bullnose with a 1-1/4" wide fillet on the bottom, the rabbet measures 5-3/4" wide by 7/16" deep, leaving 9/16" thickness on the thin portion of the pattern.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
