Nosing 7-1/4"
Nosing 7-1/4"

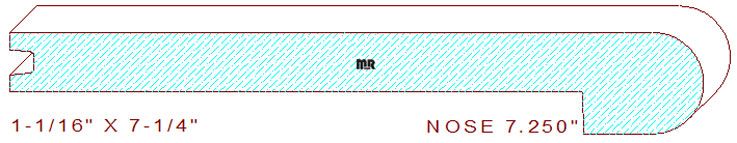

This stair tread nosing measures 7-1/4" wide by 1-1/16" thick. The profile is used to manufacture stair tread parts; it has a 1-1/16" bullnose on the outer edge, and the bottom is rabbeted to tie into a 5/8" thick hardwood floor.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
