Panel Mould 2-7/8" - 2
Panel Mould 2-7/8" - 2

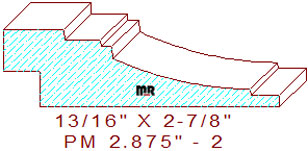

This beautiful 2-7/8" - 2 stepped panel mould measures 2.875" wide by .812" thickness, allowing the detail to be milled from four-quarter lumber. The tiered concave profile is composed of a 5/8" wide by 7/64" tall raised fillet on the left side, connected to a 3/8" wide by 1/16" deep step, and a 1/8" by 1/8" drop in elevation, joined to a shallow 3-15/32" radius concave arc with a 1/16" vertical step and a 19/64" line segment leaving a 1/8" thickness dimension on the right side of the pattern. The back side rabbet dimension is 3/8" wide by 3/8" tall, the knives can be adjusted in height with a simple axial adjustment of the left vertical cutter head on the molder. We offer a smaller version of this profile for your review and consideration, panel mould 1.750" - 49.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.375
Top Cutter Head
Width: 2.875
Depth of Cut: 0.687
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$166.50
$246.00
Not Needed
Total:
$412.50
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$176.00
$260.50
Not Needed
Total:
$436.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.25
$282.25
Not Needed
Total:
$472.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
