Panel Mould 2-7/8" - 3
Panel Mould 2-7/8" - 3

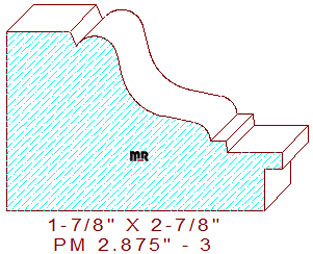

This stunning 2-7/8" - 3 panel mould measures 2.875" width by 1.875" thickness, requiring a 3-1/8" wide blank of eight or ten-quarter lumber for machining on an industrial-grade molder. The elegant profile contains a 21/32" broad line with a 1/16" wide beveled inner edge on the top left. The vertical drop in elevation connects to a three-tangent radius wave-like curvature at the center. The remaining section consists of a 5/32" wide by 1/8" deep perpendicular step with a 37/64" flat line segment on the design's right side. The rabbet dimension is 3/16" wide by 7/16" tall.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 0.000
Depth of Cut: 0.000
Left Cutter Head
Thickness: 1.875
Depth of Cut: 0.187
Top Cutter Head
Width: 2.875
Depth of Cut: 1.263
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$179.50
$260.50
Not Needed
Total:
$440.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$190.00
$275.00
Not Needed
Total:
$465.00
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
Not Needed
$205.75
$296.75
Not Needed
Total:
$502.50
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
