Picture Frame 1" - 11

Picture Frame 1" - 11

Picture Frame 1" - 11

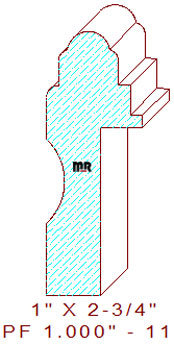

This tall slim picture frame 1" - 11 measures 1.000" wide by 2.750" tall, the detail will require five quarters for milling horizontally flat. The lovely profile is composed of a 7/16" wide half-round circle on top, flanked by two 3/8" tall vertical lines with 1/8" radius edges, the left side retains another 1/8" tiered edge tangent off of a 7/16" tall line that transitions into a 7/8" tall scotia with a 3/4" tall vertical line segment at the bottom. The right side consists of a 1/8" wide by 5/16" tall vertical step, leaving a 1/8" edge thickness above the rabbet, which measures 1-3/4" tall by 7/16" wide.

This cad generated dxf file contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.750" / Depth of Cut = .437" (top knives) & .188" (bottom cutters.)

Thickness = 1.000" / Depth of Cut = .468" (right blades.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
