Picture Frame 1-5/32"

Picture Frame 1-5/32"

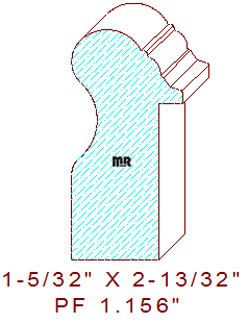

This picture frame measures 1-5/32" wide by 2-13/32" tall, the profile is ornate and retains a fairly large number of geometrical shapes that transition smoothly into one another creating the elegant look you're currently viewing. This moulding will require three profile machining stations on a moulder to create this pattern. The profile is oriented laying horizontally during the milling process, the top of the moulding would be machined from the right spindle, the rabbet on the top spindle, (this is so you can place your moulder's hold down element into the rabbeted area) and the bottom spindle would mill the cavetto on the back side of the detail, all three patterns are included in the downloadable template ready dxf file.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
