Picture Frame 1-3/8" - 9
Picture Frame 1-3/8" - 9

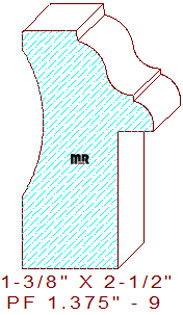

This distinguished 1-3/8" - 9 picture frame measures 1.375" wide by 2.500" tall, allowing milling from six-quarter lumber. The highly decorative profile comprises a 9/16" wide by 1/8" high raised fillet with a 3/64" eased outer edge on the top left. It's connected to a steep, down-sloping, two-tangent-radius ogee with a 1/16" vertical step in the center, joined to a 17/64" quarter-circle positioned above the 1-7/16" tall by 3/8" wide rabbet on the right. The left side retains an off-centered 1-15/32" radius scotia flanked by straight vertical line segments.
Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty years of experience in woodworking and a former Weinig field service technician. From an idea in your mind to reality in your home, our custom profiles reflect the creative style of your imagination. Let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 2.500
Depth of Cut: 0.224
Left Cutter Head
Thickness: 2.500
Depth of Cut: 0.375
Top Cutter Head
Width: 1.375
Depth of Cut: 1.125
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$212.00
$212.00
$162.00
Not Needed
Total:
$586.00
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$225.00
$225.00
$170.50
Not Needed
Total:
$620.50
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$244.50
$244.50
$183.25
Not Needed
Total:
$672.25
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
