Picture Frame 1-7/16"
Picture Frame 1-7/16"

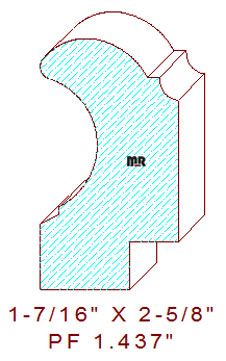

This picture frame measures 1-7/16" wide by 2-5/8" tall. The best way to describe this ornamental design is that it resembles a beak mould, with its deep cove profile on the side flowing into the top. This pattern is sure to please many artists and or interior designers.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
Right Cutter Head
Thickness: 1.437
Depth of Cut: 0.649
Left Cutter Head
Thickness: 1.625
Depth of Cut: 0.500
Top Cutter Head
Width: 2.625
Depth of Cut: 0.593
Bottom Cutter Head
Width: 0.000
Depth of Cut: 0.000
Grades of Steel
Price Per Cutter Head - Includes Template & Two Knives
*If you want only to purchase the profile templates, review our price list
*All listed cutter head prices may not be necessary based on what you
currently own
V2+RW
chrome coated 72rc face, best seller
great tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$166.47
$167.50
$219.50
Not Needed
Total:
$553.47
Black Nitride
black nitride case hardened 72rc
medium size runs
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$175.22
$177.00
$233.00
Not Needed
Total:
$585.22
Endurance
chrome and diamond coated
longest tool life
Right Cutter Head:
Left Cutter Head:
Top Cutter Head:
Bottom Cutter Head:
$188.34
$191.25
$253.25
Not Needed
Total:
$632.84
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
