Picture Frame 2-3/4" - 3

Picture Frame 2-3/4" - 3

Picture Frame 2-3/4" - 3

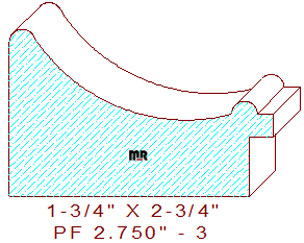

This deep concave picture frame 2-3/4" - 3 measures 2.750" wide by 1.750" thickness, allowing the detail to be milled from eight-quarter lumber. The scotia-type profile is composed of a 1/4" wide half circle on the upper left, tangent off of a deep sloping 1-7/8" radius cavetto that transitions into a 17/64" wide half circle with a 5/32" wide line segment on the right side of the pattern, the rabbet for the artwork dimensions are 1/4" wide by 5/8" tall, it is adjustable in height by a simple axial movement of the left cutter head on the molder.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this beautiful picture frame detail. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us help you design a beautiful pattern today.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.750" / Depth of Cut = .947" (top knives.)

Thickness = 1.750" / Depth of Cut = .250" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
