Picture Frame 2-13/16"

Picture Frame 2-13/16"

Picture Frame 2-13/16"

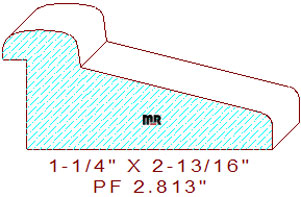

This oblique picture frame 2-13/16" measures 2.812" wide by 1.250" thickness, enabling the pattern to be milled from six-quarter lumber. The canted profile is composed of a 13/16" wide by 25/34" tall elliptical shaped arc on top, connected two a fourteen point one zero two degree angled line with a 9/64" eased edge, leaving a 3/8" thickness dimension on the right side of the pattern, the rabbet on the left side measures 1/4" wide by 15/16" tall.

Utilize any of our patterns to create a stylish moulding catalog for your millwork company or connect our profile catalog to your website; this will enable you to offer more eye-catching profiles to your clients while reducing production cost spent on molding design. Let us help you in the transformation of that beautiful house being constructed into an elegant home.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.812" / Depth of Cut = 1.125 (top knives.)

Thickness = 1.250" / Depth of Cut = .250" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
