Picture Frame 2-13/16" - 2

Picture Frame 2-13/16" - 2

Picture Frame 2-13/16" - 2

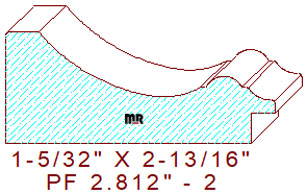

This concave picture frame 2-13/16" - 2 measures 2.812" wide by 1.156" thickness, allowing the pattern to be milled from either five or six-quarter lumber. The dished-out profile will add to the depth of field when encased around the artwork; this design is popular with religious-themed artwork. The profile is composed of an 11/32" wide straight line with a 3/64" eased edge on the left, connected to a deep down sloping two tangent radius scotia, joined to a 3/8" wide semicircular arc flanked by two 1/16" wide line segments and a 9/32" cove with a 3/64" rounded edge on the right side of the pattern. The small rabbet dimension for encasing the artwork is 1/4" wide by 5/16" tall; there is little room for adjusting the height of the rabbet with a simple axial movement of the left cutter head on the molder.

This professionally drafted cad dxf file contains two high precision template designs to create cutters for this gorgeous detail. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us help you design a beautiful pattern today.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.812" / Depth of Cut = .904" (top knives.)

Thickness = 1.156" / Depth of Cut = .250" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
