Picture Frame 3"

Picture Frame 3"

Picture Frame 3"

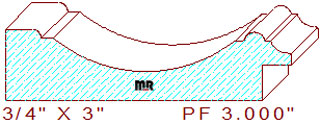

This stylish picture frame 3" measures 3.000" wide by .750" thickness, enabling the detail to be machined out of four-quarter lumber. The attractive profile is comprised of a 3/8" wide line segment with a 3/32" eased inner edge on the left, joined to a 1/8" wide fillet that transitions into a 1-29/32" long scotia, connected to a 7/32" wide half circle flanked by small line segments with a 3/16" radius cavetto positioned above the 5/16" wide by 3/8" tall rabbet for the artwork.

Utilize any of our user-friendly moulding profiles, all professionally designed by an accomplished draftsman/toolmaker with over forty year’s experience in woodworking, and a former Weinig moulder/grinder field service technician. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing the architectural decor of any room with any one or more of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .446" (top knives.)

Thickness = .750" / Depth of Cut = .313" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
