Picture Frame 3" - 1

Picture Frame 3" - 1

Picture Frame 3" - 1

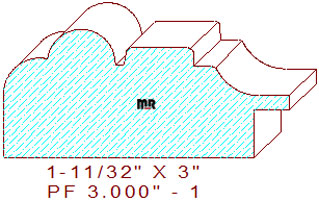

This unique picture/mirror frame 3" - 1 measures 3.000" wide by 1.343" thickness, enabling the pattern to be machined out of six or eight-quarter lumber. The distinguished profile is composed of a 25/64" quarter round arc on the left, joined to a 23/64" half circle merged with a 3/32" wide sunk fillet in the center, attached to a 47/64" wide by 13/64" tall raised fillet with 1/16" eased edges, connected to a 3/16" wide line segment with a 1/2" radius cove above the 3/8" wide by 1/2" tall rabbet for the artwork or mirror, depending on how it is utilized.

We're delighted you found a beautiful profile that interest you, please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial molder and knife grinding room. If you're new to the industry read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be a paramount craftsman for all our talented clients.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .812" (top knives.)

Thickness = 1.343" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
