Mirror Frame 3" - 10

Mirror Frame 3" - 10

Mirror Frame 3" - 10

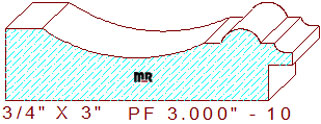

This beautiful picture/mirror frame 3" - 10 measures 3.000" wide by .750" thickness, allowing the detail to be machined out of four-quarter lumber. The good-looking profile is comprised of a 25/64" wide line segment on the left, joined to a 1-11/16" long scotia derived from a 1-3/4" radius semicircle, connected to a 27/64" wide half circle flanked by small line segments with a 1/8" radius congee above the 1/4" wide by 3/8" tall rabbet for the artwork or mirror.

Mirror Reflections has over thirty years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .303" (top knives.)

Thickness = .750" / Depth of Cut = .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
