Picture Frame 3" - 3

Picture Frame 3" - 3

Picture Frame 3" - 3

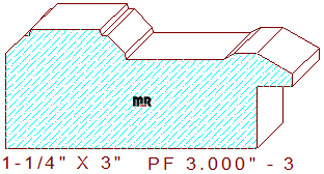

This classy picture frame 3" - 3 measures 3.000" wide by 1.250" thickness, necessitating the use of six-quarter lumber for milling on an industrial-style molder. The distinctive profile is composed of a 3/4" wide line with 1/16" squared notches and a 3/16" beveled edge on the left, joined to another 3/16" angled lines with a 1/16" drop in elevation that connects with a 1-1/32" line segment in the center, attached to an up-sloping angled line with a 15/64" wide raised fillet and a 3/8" wide beveled line on the right side of the pattern, the rabbet for the artwork measures 3/8" wide by 21/32" tall.

Mirror Reflections has over thirty-six years of experience in designing and manufacturing some of the finest quality acrylic templates and profile knives in the woodworking industry. Encounter our excellent customer service with affordable pricing by offering us an opportunity to demonstrate our abilities, you will be pleasantly impressed with our services.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.000" / Depth of Cut = .560" (top knives.)

Thickness = 1.250" / Depth of Cut = .375" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
