Picture Frame 3-1/8" - 2

Picture Frame 3-1/8" - 2

Picture Frame 3-1/8" - 2

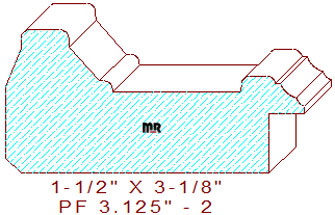

This glamorous picture frame 3-1/8" - 2 measures 3.125" wide by 1.500" thickness, requiring the detail to be machined out of eight-quarter lumber. The elegant profile is composed of a 1/2" wide by 13/64" tall raised fillet with 5/32" rounded edges on the top left, connected to a sharp line that joins to a 3/4" tall vertical line and a 5/32" chamfer on the bottom edge. The center is comprised of a downward sloping angled line that merges with a 3/32" quarter round bead and a 1-11/32" wide sunk fillet; the right edge consists of another smaller raised fillet with a 1/4" cove attached to a 1/8" cavetto positioned above the 3/8" wide by 5/8" tall rabbet for the artwork.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exist.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.125" / Depth of Cut = .803" (top knives.)

Thickness = 1.500" / Depth of Cut = .408" (right blades) & .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
