Picture Frame 3-1/8" - 3

Picture Frame 3-1/8" - 3

Picture Frame 3-1/8" - 3

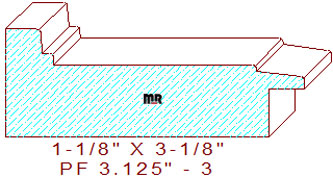

This custom picture frame 3-1/8” - 3 measures 3.125” wide by 1.125” thickness, permitting the pattern to be machined out of five or six-quarter lumber. The unique profile is comprised of a 3/8” wide flat line with a ¼” drop in elevation on the top left, connected to a 1/8” by 1/8” perpendicular step joined to a 2-1/8” wide flat line segment in the center, attached to a 1/16” drop-in elevation merged with a 7.125 degree angled line that transitions the thickness to 1/8” on the right side, above the 3/8” wide by ½” tall rabbet for the artwork.

We're delighted you found a beautiful profile that interests you; please consider all the other services we offer for your precision woodworking company. Mirror Reflections offers hundreds of tooling supplies for your industrial moulder and knife grinding room. If you are new to the industry, read some of our informational articles, they will help you get started with all the basics. One thing we have in common is our passion for excellence and our quest to be paramount craftsman for all our clients.

For molding knife quoting purposes, click to open the calculator below, we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.125" / Depth of Cut = .691" (top knives).

Thickness = 1.125" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
