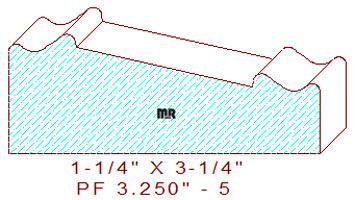

This Mirror Frame Moulding Profile 3-1/4" - 5 measures 3.250" wide by 1.250" thickness, this design will require size quarter lumber to mill the pattern on an industrial style moulder. The profile consist of symmetrically reversed cavetto's positioned on both the upper and lower edge side on the face of the detail that are connected to one another by a straight angled line, you can mill any optional rabbet size (for the mirror) of your choice by milling it from the vertical right, left, or bottom horizontal moulder cutter head.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change
the “Shrink to Fit” option to 100%
To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please
send $5.00 via PayPal.Me/MirrorReflections we will email you
the dxf file shortly after payment is received.
