Picture Frame 3-1/2" - 1

Picture Frame 3-1/2" - 1

Picture Frame 3-1/2" - 1

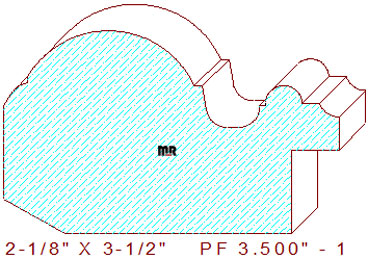

This beautifully bold picture frame 3-1/2" - 1 measure 3.500" wide by 2.125" thickness, the rough blank for milling will require glued-up four, or solid ten-quarter lumber. The intriguing profile is composed of a 1-3/4" wide semicircular arc on top, connected to a small vertical step and a 3/16" rounded bevel on the left, with another bevel on the bottom of the same side, the middle consists of a deep sloping scotia flanked by tiny horizontal line segments, joined to a 3/8" wide by and a 3/16" wide line with a 7/32" cove on the right side of the pattern. The rabbet dimension is 1/2" wide by 7/8" tall; this area can be altered in height with a simple axial adjustment of the left vertical cutter head on the molder.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative picture frame pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = 1.011" (top knives.)

Thickness = 2.125" / Depth of Cut = .750" (right blades) & .500" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
