Picture Frame 3-1/2" - 10

Picture Frame 3-1/2" - 10

Picture Frame 3-1/2" - 10

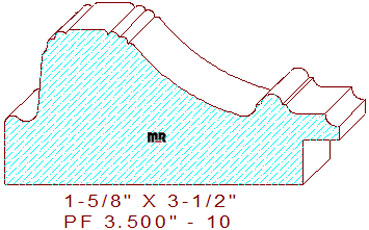

This fashionable picture frame 3-1/2" - 10 measures 3.500" wide by 1.625" thickness, enabling the pattern to be milled from eight-quarter lumber. The beautifully opulent profile is composed of a series of bidirectional small beads at the top, connected to a deep down-sloping scotia with a 3/16" wide half-round circle on the left. The center consists of a 2-3/16" cove tangent off a 1/8" concave semicircle, joined to a 7/32" wide half round bead flanked by tiny lines segments that transitions into a 13/32" congee derived from a 1/8" cavetto with another 1/8" cove on the right side of the detail, the rabbet dimension is 3/8" wide by 15/32" tall.

Are you a moulding manufacturer? If so, please add your company to our millwork suppliers map, this valuable resource will help potential customers experience the craftsmanship of your creative woodworking shop. Did you know you can connect our substantial moulding catalog to your website? It's free, offer your clients profile designs they don’t even know exists.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = 1.124" (top knives.)

Thickness = 1.625" / Depth of Cut = .375" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
