Picture Frame 3-1/2" - 19

Picture Frame 3-1/2" - 19

Picture Frame 3-1/2" - 19

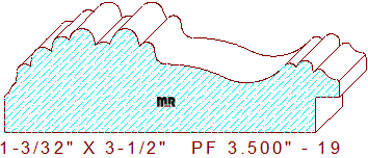

This beautifully ornate picture frame 3-1/2" - 19 measures 3.500" wide by 1.093" thickness, allowing the detail to be milled from five-quarter lumber. The custom beaded profile comprises cascading half and quarter round beads on the left, joined to a graceful wave-like french curve in the center, connected to a few more half-round beads with a tiny ogee on the right-hand side of the pattern. The rabbet for the artwork dimension is 1/4" wide by 3/8" tall; it can be adjusted in height with a simple axial movement of the left cutter head on the molder.

This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this gorgeous picture frame detail. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing your architectural decor with any of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .889" (top knives.)

Thickness = 1.031" / Depth of Cut = .250" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
