Picture Frame 3-1/2" - 4

Picture Frame 3-1/2" - 4

Picture Frame 3-1/2" - 4

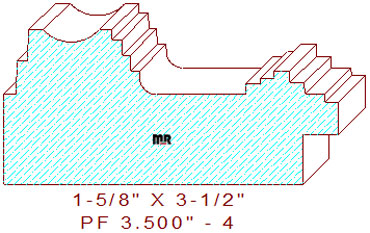

This southwest style picture frame 3-1/2" - 4 measures 3.500' wide by 1.625" thickness, allowing the detail to be milled from eight-quarter lumber. The bidirectional stepped profile is comprised of a 37/64" wide concave semicircle flanked by small fillets on top, joined to two elevation changing steps on the left side. The middle is composed of four elevation changes with a 1-7/64" wide congee in the center that joins to more offset changes in elevation. The rabbet for the artwork dimension is 3/8" wide by 17/32" tall, and this area is adjustable in height with a simple axial movement of the left cutter head on the molder.

Architects, interior designers, lumber mills, and manufacturers have been utilizing our vast variety of creative designs for years, we trust you will find that special profile to enhance the architectural style of your client's home. Download all our free moulding dxf files, see how easy the services we provide can increase productivity while reducing manufacturing costs.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.500" / Depth of Cut = .758" (top knives.)

Thickness = 1.625" / Depth of Cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
