Picture Frame 3-3/4" - 13

Picture Frame 3-3/4" - 13

Picture Frame 3-3/4" - 13

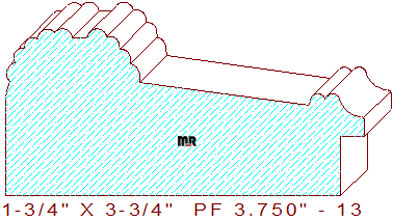

This creatively elegant picture frame 3-3/4" - 13 measures 3.750" wide by 1.750" thickness, necessitating the use of eight-quarter lumber for milling on an industrial moulder. The stunning gorgeous profile is comprised of a series of small bidirectional convex arcs divided by a 5/32" wide sunk fillet on the top left, connected to an elevation changing 7.9 degrees angled line that transitions the thickness in the center, attached to two decorative tiny beads and a little two tangent radius cyma reversa with a 3/64" eased edge, above the 1/4" wide by 5/8" tall rabbet for the artwork on the right side of the design.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this beautiful picture frame pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

For moulding knife quoting purposes click to open the calculator below, we supplied only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions feel free to print a copy of our fraction - decimal - millimeter chart, place it on the molder, or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 3.750" / Depth of Cut = 1.116" (top knives).

Thickness = 1.750" / Depth of Cut = .191" (right blades) & .250" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
