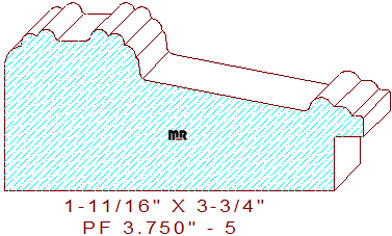

This elegantly bold picture frame 3-3/4" - 5 measures 3.750" wide by 1.687" thickness, necessitating the use of eight-quarter lumber for milling on an industrial style molder. The beaded profile is composed of 3/8" wide by 1/8" deep sunk fillet flanked by a series of bidirectional cascading half and quarter circles on the top left portion, connected to an elevation changing eleven degrees angled line that transitions into two more beads with a small eased edge fillet on the right side of the pattern. The rabbet dimension is 5/16" wide by 9/16" tall; it can be adjusted in height with a simple axial movement of the left vertical cutter head on the molder.

This professionally drafted cad dxf file (available for purchase in the box below) contains two high precision template designs to create cutters for this gorgeous picture frame molding. From just an idea in one's mind, to reality in their home, our custom profiles reflect the creative style of your imagination, let us assist you in complementing your architectural decor with any of our attractive molding patterns.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.750" / Depth of Cut = 1.125" (top knives) & .000" (bottom cutters.)

Thickness = 1.687" / Depth of Cut = .312" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
