Picture Frame 3-3/4" - 7

Picture Frame 3-3/4" - 7

Picture Frame 3-3/4" - 7

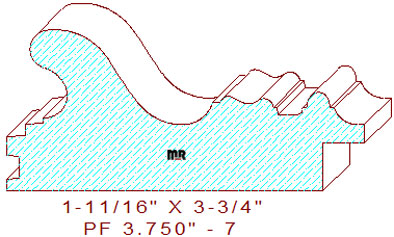

This compelling Victorian picture frame 3-3/4" - 7 measures 3.750" wide by 1.687" thickness, the detail will require eight-quarter lumber for milling on an industrial-style molder. The beautifully attractive profile is composed of a combination of sunk fillets, half-rounded beads, and graceful arcs that are tangent to french style curves, the rabbet dimension is 1/2" tall by 7/16" wide. Just imagine how lovely this frame will look when gesso is applied, and the gilding process is completed; it will always embellish the beautiful artwork in which is encased. The cad dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path to help expedite production.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 3.750" / Depth of Cut = .994" (top knives.)

Thickness = 1.687" / Depth of Cut = .637" (right blades) & .437" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
