Picture Frame 4" - 9

Picture Frame 4" - 9

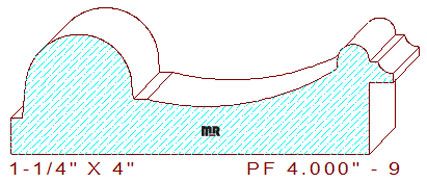

This 4" Stylish Picture Frame - 9 measures 4.000" wide by 1.250" thickness. The profile is comprised of a high half-round circle flanked by small fillets attached to a large cavetto in the center with a small connected bead, fillet, and cove positioned above the rabbet. The rabbet measures 1/4" wide by 3/4" tall for insertion of the panel or artwork.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
