Picture Frame 4-3/8" - 2

Picture Frame 4-3/8" - 2

Picture Frame 4-3/8" - 2

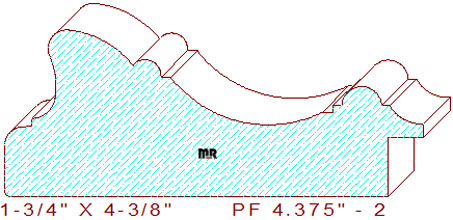

This extravagant picture frame 4-3/8" - 2 measures 4.375" wide by 1.750" thickness, enabling the detail to be machined out of eight-quarter lumber. The ornate profile is composed of a 3/4" tall vertical line segment with a 3/16" rounded edge on the bottom left, connected to an as small vertical line that transitions into a beak-shaped design on the top, joined to a 19/64" wide half round bead with a 7/64" wide fillet that merges with a 1-9/32" radius scotia in the center, attached to a series of two steep steps that join to a 27/64" wide half circle flanked by small line segments with a 3/8" cove on the right side of the pattern. The rabbet for the artwork dimension is 3/8" wide by 5/8" tall, this area can be slightly adjusted in height to your specific needs with a simple axial adjustment on the left vertical cutter head on the machinery.

This cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing knives for this creative pattern. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path expediting the production process.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 4.375" / Depth of Cut = .996" (top knives.)

Thickness = 1.750" / Depth of Cut = .701" (right blades) & .375" (left cutters.)

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
