Mirror Frame 4-9/16" - 1

Mirror Frame 4-9/16" - 1

Mirror Frame 4-9/16" - 1

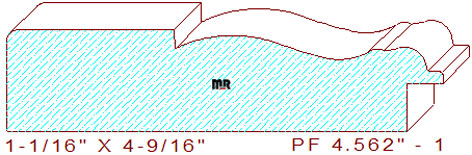

This mirror frame 4-9/16" measures 4.562" wide by 1.062" thickness, requiring a 4-13/16" wide blank of five-quarter lumber for milling on an industrial molder. The embellishing profile contains a 1-3/4" wide by 13/64" tall raised fillet with a 1/8" rolled outer edge on the top left. The center comprises a three-tangent radius wave-like curvature with a downsloping convex arc and a thin line segment on the design's right side. The rabbet dimension for the mirror is 3/8" wide by 1/2" tall; this is adjustable axially on the left cutter head.

All our precision cad (computer-aided design) files contain important molder setup and grinding information, all designed to help you save time and money in the production process. Thanks for allowing us to help enhance a home's exquisite architectural details, one astonishingly gorgeous profile at a time.

For molding knife quoting purposes, click to open the calculator below; we supplied only the important measurements; enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the molder or around the shop to help machine operators save time and increase accuracy during setup procedures.

Width = 4.562" / Depth of Cut = .625" (top knives).

Thickness = 1.062" / Depth of cut = .375" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
