Picture Frame 5" - 3

Picture Frame 5" - 3

Picture Frame 5" - 3

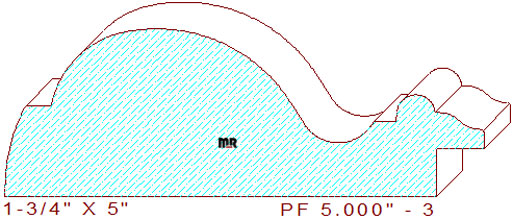

This sumptuous picture frame 5" - 3 measures 5.000" wide by 1.750" thickness, necessitating a 5-1/4" wide blank of eight-quarter lumber for milling on an industrial molder. The extravagant profile contains a 3/32" vertical line segment, tangent to a 1-25/32" convex arc with a 17/64" fillet on the left side. The flat line connects to a free-flowing three tangent radii s-shaped curvature in the center. The remaining portion of the pattern consists of a 15/64" horizontal line segment attached to an elongated half-circle with a small ogee and a 3/64" eased edge on the designs right side. The rabbet dimension for the artwork is 1/2" tall by 1/2" wide.

This template ready cad generated dxf file (purchase in the link below) contains three skillfully drafted template designs for producing profile cutters for this creative picture frame. All our innovative profiles have a proven unbroken computer numerical control (CNC) tool path, making your job easier the production process.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = 1.281" (top knives).

Thickness = 1.750" / Depth of Cut = .326" (right blades) & .500" (left cutters).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
