Mirror Frame 5" - 4

Mirror Frame 5" - 4

Mirror Frame 5" - 4

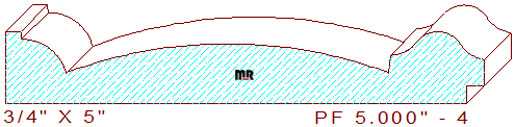

This alluring mirror frame 5" - 4 measures 5.000" wide by .750" thickness, requiring a 5-1/4" wide blank of four-quarter lumber for milling on an industrial molder. The left side of the beautiful profile contains a 5/32" fillet with a 5/64" vertical step joined to a 15/32" convex quarter round bead. The center consists of a 4-55/64" radius semicircular arc merged with a bidirectional s-shaped curvature with a rabbet dimension of 1/4" tall by 1/4" wide.

Look for a few other profile designs for different rooms in your beautiful, stylish home, with over 15,000 patterns in our search by size molding catalog there is something for everyone's creative architectural style. Utilize our manufacturers map listed by states to help you locate a mill in your area to produce any of our attractive profiles.

For knife quoting purposes, click to open the calculator below; we supplied only the important measurements, enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. If you would like some assistance with the dimensions, print a copy of our fraction - decimal - millimeter chart, place it on the machinery around the shop to help operators save time and increase accuracy during setup procedures.

Width = 5.000" / Depth of Cut = .500" (top knives).

Thickness = .750" / Depth of Cut = .250" (right blades).

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file” , please send $11.00 to PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
