Plant on / Applied Moulding 2-3/4"

Plant on / Applied Moulding 2-3/4"

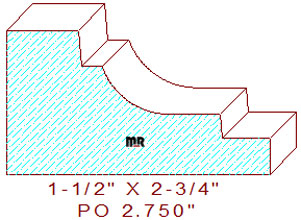

This door header applied moulding 2-3/4" measures 2.750" wide by 1.500" thickness, necessitating the use of eight quarter lumber for milling on a industrial molder. The beautiful profile was originally designed to be used as a architrave plant on, a solid piece of surfaced four sides (S4S) lumber would be installed over the door opening, this profile would be applied to the top of that piece of lumber creating the door header. The detail is composed of a 3/4" wide by 3/8" deep stepped line on the left, connected to a 1/4" wide line segment that transitions into a 1-1/4" wide congee derived from a 3/4" cove, joined to a 1/4" tall vertical step with a 1/2" wide straight line, leaving a 3/8' thickness dimension on the right side of the pattern.

Be sure to check out a few other profile designs for different rooms in your beautiful home or office, our moulding catalog has over a fifteen thousand profiles to select from. Our eminence derives from over thirty-five years of experience and superior functionality of all our custom knife profiles.

For knife quoting purposes click to open the calculator below, we have added only the important measurements, just enter the appropriate dimension in the boxes provided. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the molder to help operators save time and increase accuracy during machine setup.

Width = 2.750" / Depth of Cut = 1.125" (top knives.)

Molding Knife Calculator

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase this CAD generated, “template ready moulding dxf file”, please send $5.00 via PayPal.Me/MirrorReflections we will email you the precision drawing shortly after the payment is received.
