Batten Moulding 2-3/4" - 3

Batten Moulding 2-3/4" - 3

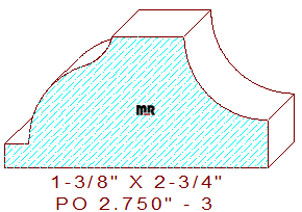

This decorative batten moulding 2-3/4" - 3 measures 2.750" wide by 1.375" thickness. The functional profile is used to cover seams where panels meet in both interior and exterior siding applications. This lovely detail is comprised of a 3/4" wide horizontal line in the center, attached to a 7/8" cove, leaving a 1/2" thickness dimension on the taller side, the opposite side consists of a 7/16" and a 13/16" tangent radiuses creating a cyma recta, connected to a 1/4" wide straight line, leaving a 1/4" thickness dimension on the thin side of the design.

Custom-made elegance is a phrase used to define the beauty, style and artisanship of thousands of our moulding designs. Whether you own a recently built house or older style residence, we have the ability knowledge and experience to create profiles that will complement the architectural decor of your elegant home or office.

For knife quoting purposes use the calculator below, we have added only the important measurements. A brief detailed explanation on how to use the calculator is located here. Need some assistance with the dimensions? Print a copy of our fraction - decimal - millimeter chart, place it on the moulder to help operators save time and increase accuracy during machine setup.

Width = 2.750" / Depth of Cut = 1.125" (top knives).

Molding Knife Calculator

Moulding Size
(inches)

fraction
/

Depth of Cut
(inches)

fraction
/

Grade of Steel

Subtotal

$0.00
$0.00
$0.00

Custom Moulding Template

$35.00
$35.00
$35.00

Total
(Template & 2 Knives)

$0.00
$0.00
$0.00

Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%

To purchase a copy of this template ready dxf file for creating acrylic templates to produce knives please send $5.00 via PayPal.Me/MirrorReflections we will email you the dxf file shortly after payment is received.
