Plinth Block 10" - 2

Plinth Block 10" - 2

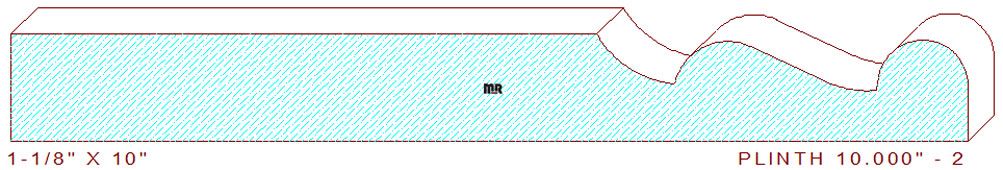

This large, beautifully designed plinth block measures 10 inches wide by 1-1/8" thickness. The profile is composed of a 6-1/8" flat portion that transitions into a cavetto with an attached cyma reversa that flows into a half circle at the top of the pattern. There are two template designs in the downloadable dxf file. One for machining the whole profile (12" moulder required), the other mills just the detail allowing you to alter the widths if desired.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
