Plinth Block 3-1/2" - 2

Plinth Block 3-1/2" - 2

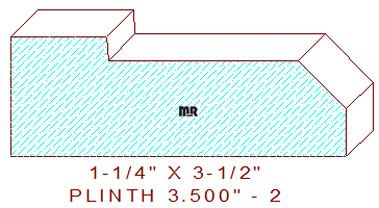

This plinth block 3-1/2" - 2 measures 3.500" wide by 1.250" thickness. The design consists of a 1" wide fillet that transitions downward 1/4" to a 2" wide fillet, the outer edge is chamfered 1/2" wide at forty-five degrees leaving a 1/2" tall vertical fillet on the side.
Note: If you’re experiencing trouble printing to Full Scale, Go to File, Print Preview. Change the “Shrink to Fit” option to 100%
To purchase this CAD generated,
“template ready moulding dxf file”
, please send $11.00 to
PayPal.Me/MirrorReflections
we will email you the precision drawing shortly after the payment is received.
